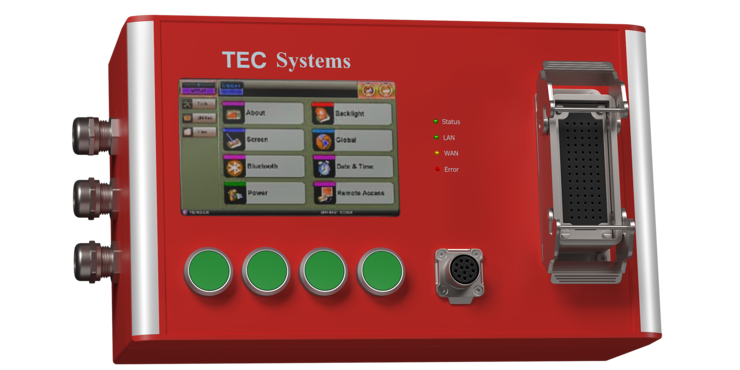

Integrated lid supports

Optional version with transparent lid

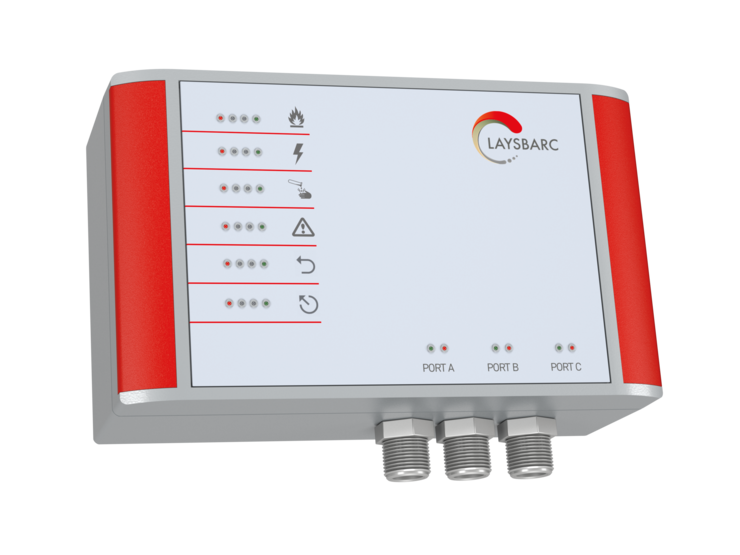

Exterior hinges without visible screws also available

Insert lock also available




aluCASE

Our premium enclosures range in diecast aluminium

csa_usa   GOST   Germanischer_Lloyd   UL

IP 66, IP 67 - Optional: IP 69K

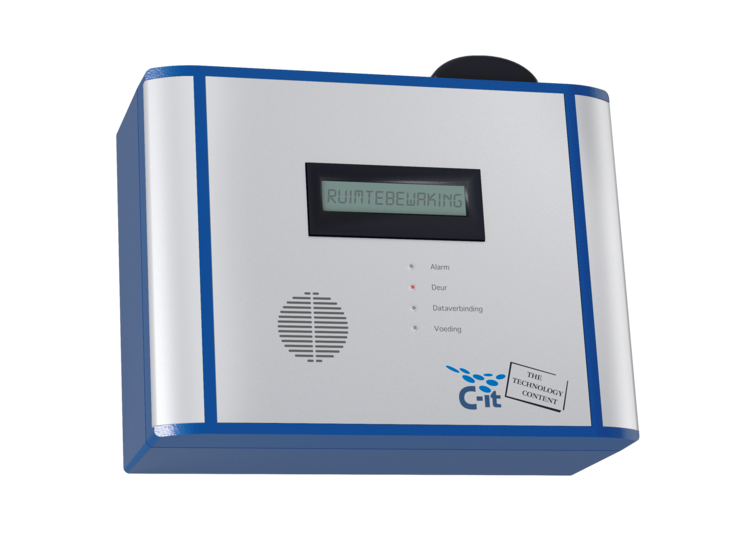

aluCASE is a highly attractive and very versatile range of diecast aluminium enclosures for industrial electronics. The design is perfect for mounting to a wall or a machine, or for use as a mobile instrument. The enclosures are sealed to IP 67 for indoor and outdoor applications. Hot jet wash IP 69K is also available. The enclosures can be mounted without opening the lid which means your electronics remain protected at all times. Whatever the application, aluCASE provides the very best housing solution for your components.

Designer features include a recessed lid, for fitting a membrane keypad, front plate or product label, clip-on design covers in plastic or aluminium that hide the lid screws and mounting holes, integrated hinges and lid retaining straps (on most models). Two versions are available with transparent lids. Threaded screw bosses are provided in the base and lid for PCBs, mounting plates, DIN rails etc. An optional key lock provides security access. Cable glands and other accessories are also available.

We can supply aluCASE enclosures fully customised to your requirements.

Generate PDF






alu_case_variante_standard
  Type Part No. Length Width Height Weight (g) Mounting point D Mounting point E Silicon-gasket Design covers Alu Design covers POM Shielding Integrated lid supports Corrosion proof coating Protection Class IP 69K Hinges Insert lock Transparent lid Download 3D-Model-Download Add to my list
190.110.000 ACF 110 190.110.000 140 110 60 700 122 60 o o o o o o o - Download 3D-Model-Download Add to my list
190.112.000 ACF 112 190.112.000 200 110 60 880 182 60 o o o o o o o - Download 3D-Model-Download Add to my list
190.130.000 ACF 130 190.130.000 160 130 70 910 142 80 o o o o o o o - Download 3D-Model-Download Add to my list
190.132.000 ACF 132 190.132.000 220 130 70 1130 202 80 o o o o o o o - Download 3D-Model-Download Add to my list
190.150.000 ACF 150 190.150.000 180 150 60 968 162 100 o o o o o o o - Download 3D-Model-Download Add to my list
190.152.000 ACF 152 190.152.000 260 150 60 1273 242 100 o o o o o o o - Download 3D-Model-Download Add to my list
190.170.000 ACF 170 190.170.000 200 170 60 1096 182 120 o o o o o o o - Download 3D-Model-Download Add to my list
190.172.000 ACF 172 190.172.000 280 170 60 1471 262 120 o o o o o o o - Download 3D-Model-Download Add to my list
190.200.100 ACF 200 190.200.100 230 200 90 1720 212 144 o - o o o o o - Download 3D-Model-Download Add to my list
191.052.000 AC 052 191.052.000 75 50 33 134 61 34 o - o - o o - - - Download 3D-Model-Download Add to my list
191.054.000 AC 054 191.054.000 100 50 33 166 86 34 o - o - o o - - - Download 3D-Model-Download Add to my list
191.070.000 AC 070 191.070.000 100 70 50 328 84 33 o - o - o o - - - Download 3D-Model-Download Add to my list
191.072.000 AC 072 191.072.000 140 70 50 411 124 33 o - o - o o - - - Download 3D-Model-Download Add to my list
191.074.000 AC 074 191.074.000 180 70 50 495 164 33 o - o - o o - - - Download 3D-Model-Download Add to my list
191.090.000 AC 090 191.090.000 120 90 60 580 102 40 o o o o o - - - Download 3D-Model-Download Add to my list
191.092.000 AC 092 191.092.000 160 90 60 680 142 40 o o o o o - - - Download 3D-Model-Download Add to my list
191.094.000 AC 094 191.094.000 250 90 60 861 232 40 o o o o o - - - Download 3D-Model-Download Add to my list
191.150.000 AC 150 191.150.000 180 150 90 1216 162 100 o o o o o o o - Download 3D-Model-Download Add to my list
191.152.000 AC 152 191.152.000 260 150 90 1569 242 100 o o o o o o o - Download 3D-Model-Download Add to my list
191.170.000 AC 170 191.170.000 200 170 90 1430 182 120 o o o o o o o - Download 3D-Model-Download Add to my list
191.172.000 AC 172 191.172.000 280 170 90 1789 262 120 o o o o o o o - Download 3D-Model-Download Add to my list
191.200.100 AC 200 191.200.100 230 200 120 2005 212 144 o - o o o o o - Download 3D-Model-Download Add to my list
191.202.100 AC 202 191.202.100 330 200 120 2328 312 144 o - o o o o o - Download 3D-Model-Download Add to my list
191.250.100 AC 250 191.250.100 280 250 120 2643 262 194 o - o o - o o - Download 3D-Model-Download Add to my list
191.252.100 AC 252 191.252.100 380 250 120 3295 362 194 o - o o - o o - Download 3D-Model-Download Add to my list
191.300.100 AC 300 191.300.100 330 300 120 3353 312 244 o - o o - o o - Download 3D-Model-Download Add to my list
191.302.100 AC 302 191.302.100 430 300 120 4092 412 244 o - o o - o o - Download 3D-Model-Download Add to my list
192.092.000 AC 092K 192.092.000 160 90 60 680 142 40 o o - o o - - o Download 3D-Model-Download Add to my list
192.110.000 ACF 110K 192.110.000 140 110 60 534 122 60 o o - o o - - o Download 3D-Model-Download Add to my list
  Part No. Length Width Height Add to my list
190.110.000 190.110.000 140 110 60 Add to my list
190.112.000 190.112.000 200 110 60 Add to my list
190.130.000 190.130.000 160 130 70 Add to my list
190.132.000 190.132.000 220 130 70 Add to my list
190.150.000 190.150.000 180 150 60 Add to my list
190.152.000 190.152.000 260 150 60 Add to my list
190.170.000 190.170.000 200 170 60 Add to my list
190.172.000 190.172.000 280 170 60 Add to my list
190.200.100 190.200.100 230 200 90 Add to my list
191.052.000 191.052.000 75 50 33 Add to my list
191.054.000 191.054.000 100 50 33 Add to my list
191.070.000 191.070.000 100 70 50 Add to my list
191.072.000 191.072.000 140 70 50 Add to my list
191.074.000 191.074.000 180 70 50 Add to my list
191.090.000 191.090.000 120 90 60 Add to my list
191.092.000 191.092.000 160 90 60 Add to my list
191.094.000 191.094.000 250 90 60 Add to my list
191.150.000 191.150.000 180 150 90 Add to my list
191.152.000 191.152.000 260 150 90 Add to my list
191.170.000 191.170.000 200 170 90 Add to my list
191.172.000 191.172.000 280 170 90 Add to my list
191.200.100 191.200.100 230 200 120 Add to my list
191.202.100 191.202.100 330 200 120 Add to my list
191.250.100 191.250.100 280 250 120 Add to my list
191.252.100 191.252.100 380 250 120 Add to my list
191.300.100 191.300.100 330 300 120 Add to my list
191.302.100 191.302.100 430 300 120 Add to my list
192.092.000 192.092.000 160 90 60 Add to my list
192.110.000 192.110.000 140 110 60 Add to my list

⬤ standard   o available   - not available




Certifications

CSA (optional)
GOST
Germanischer Lloyd (optional)
UL (optional)

Enclosure sizes

29 sizes
Dimensions from: L x W x H
75 x 50 x 33 mm to 430 x 300 x 120 mm

Additional info

Can be fastened while enclosure is closed

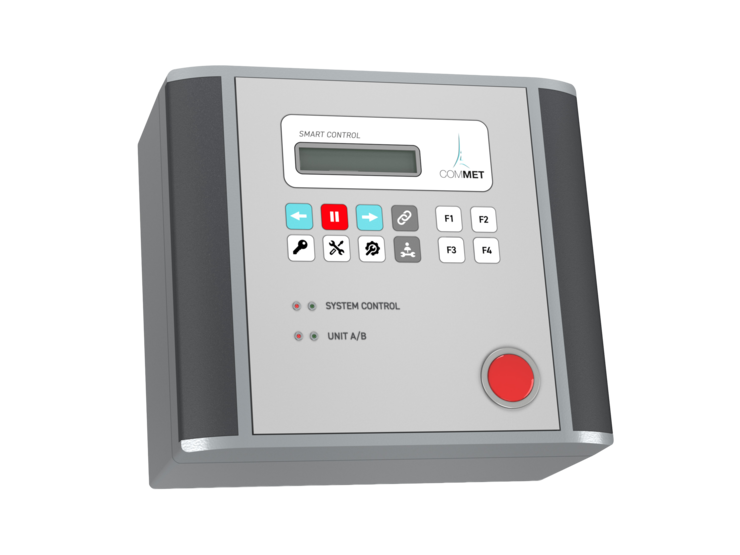

Integrated recess in the lid for a membrane keypad, front plate or label
Integrated PP (polypropylene) lid support strap
2 sizes available with transparent lids
Clip-on design covers, standard: Plastic POM (polyoxymethylene), similar to RAL 7040 window grey
Optional: Anodised aluminium design covers
Optional: Exterior hinges made from anodised aluminium with no visible outer screws
Optional: Access safeguard by means of key lock

Enclosure

Diecast aluminium alloy
EN AN-44300 DIN EN 1706
(GD Al Si 12/DIN 1725)
1° mould slope for casting ejection > internal circumference dimensions decrease by 1° towards enclosure bottom.

Fastening

Separate screw channels

Internal mounting

M5 fastening thread on the enclosure base and in the lid

Ingress protection

IP 66, IP 67 / EN 60529
Optional: IP 69K / DIN 40050

Gasket

TPE moulded gasket, silicone-free, temperature resistance: -40°C to +120°C
Optional: Silicone gasket, temperature resistance: -50°C to +140°C

Lid screws

Stainless steel 1.4567, captive

Surface

Powder coating RAL 7040, window grey
Optional: Special colours
Optional: Corrosion protection

Customising

Learn more about our full customising service for installation-ready enclosures

Approval

194 KB
PDF  UL
238 KB
2,087 KB
350 KB


Assembly instructions

650 KB


Catalog

2,761 KB


Design covers

84 KB


Enclosures tolerance

107 KB


Gasket

52 KB
349 KB
116 KB


Ingress protection

351 KB
4,417 KB
351 KB
289 KB


Integrated lid support

84 KB


Material

239 KB
281 KB
