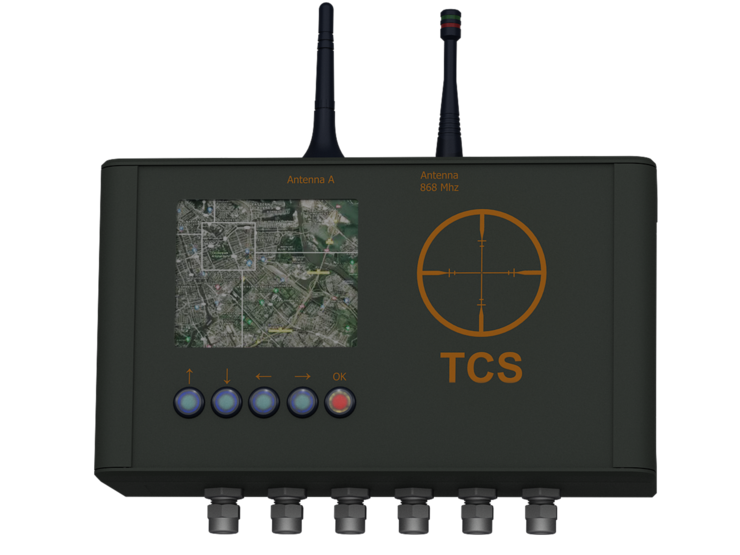

aluDOOR ADF Military application

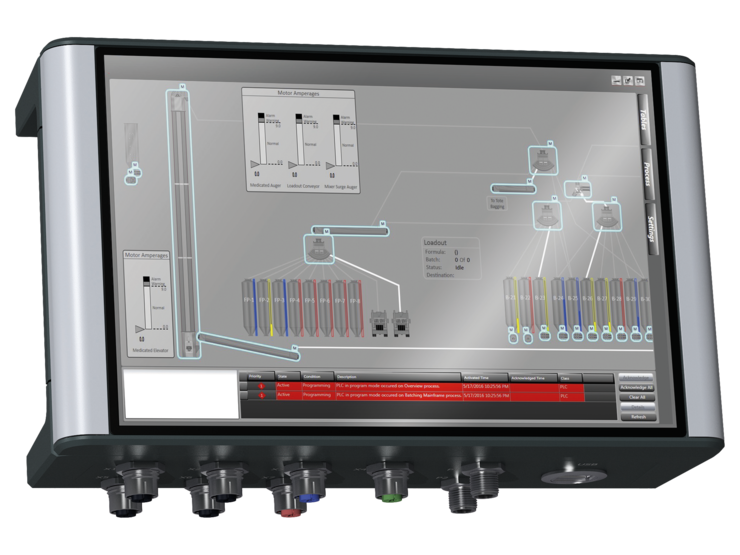

aluDOOR enclosures application Process technology

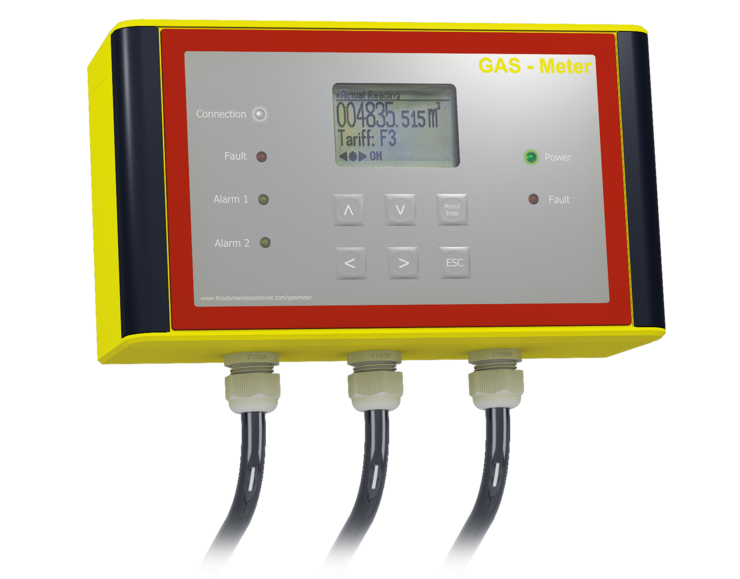

aluDOOR ADF application GAS meter

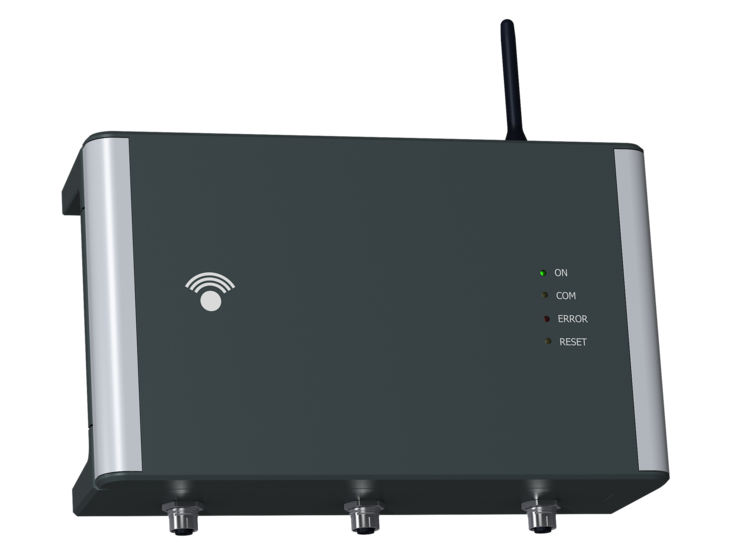

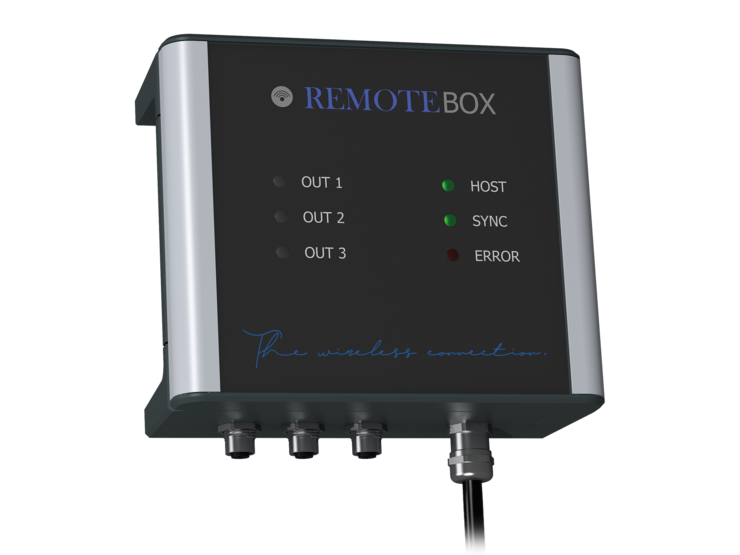

aluDOOR ADO enclosures application for IoT

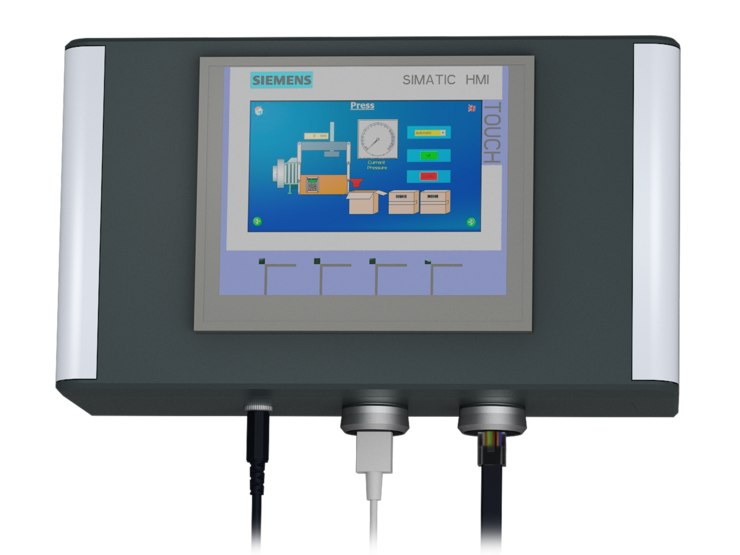

aluDOOR ADO Mechanical engineering application

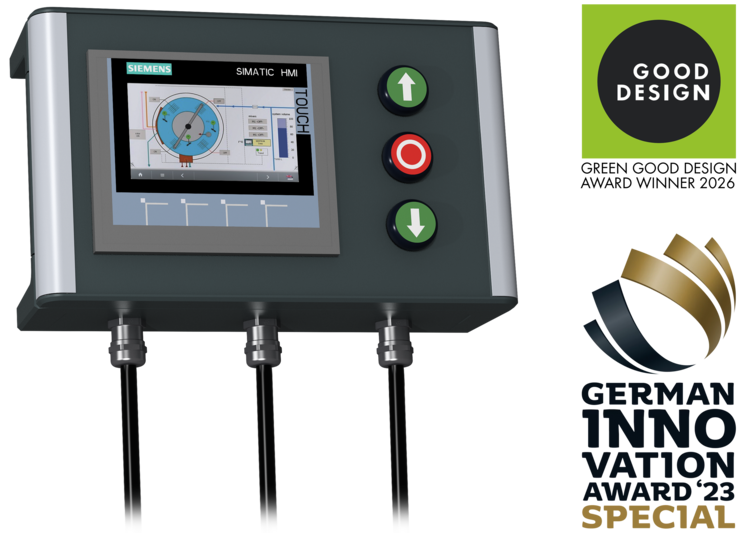

aluDOOR enclosures application Switch box

Silver matt coated design covers made of aluminium

: Lid screws and threaded bushings made of stainless steel

Secure the lid with 2 screws

Fastening dome on the enclosure base and in the lid




aluDOOR

The new generation of enclosure

IP 66, 67, 69K

aluDOOR enclosures are a further development of the unique series aluCASE.  This enclosure has an unmistakable progressive design. They are the modern, contemporary »packaging« for innovative industrial electronics.

The integration of true hinges without additional expenditure has been implemented successfully in the new series. After the »mounting« of the lid and the fixation with the securing screws, they turn into »compact cabinets« with stainless steel screws and stainless steel threaded bushings. Even under extreme operating conditions, this arrangement ensures an absolutely safe and permanent closure technology.

aluDOOR enclosures are available either with recesses in the lid for the installation of membrane keypads (ADF) or with a flat lid (ADO).

Finally, the installation level of the enclosures is covered by design covers made of aluminium coated silver matt, providing an unparalleled design. All enclosures have domes in bottom sections and lids for the secure fastening of installations.

Generate PDF






ADF Sizes

aluDOOR variant ADF series with lid recess

aluDOOR ADF: Version with lid recess



ADO Sizes

aluDOOR variant ADO series with flat lid

aluDOOR ADO: Version with flat lid


aluDOOR_ADF_VariationInfoImage

aluDOOR ADF: Version with lid recess

  Type Part No. Length Width Height Weight (g) Mounting point D Mounting point E Silicon-gasket Shielding Corrosion proof coating Mounting plates Supporting rail for series terminals XA Download Add to my list
133.090.000_RAL7016 ADF 090 133.090.000 120 90 70 600 100 70 o o o o o Download Add to my list
133.092.000_RAL7016 ADF 092 133.092.000 160 90 70 705 140 70 o o o o o Download Add to my list
133.110.000_RAL7016 ADF 110 133.110.000 140 110 80 785 120 90 o o o o o Download Add to my list
133.112.000_RAL7016 ADF 112 133.112.000 200 110 80 785 180 90 o o o o o Download Add to my list
133.130.000_RAL7016 ADF 130 133.130.000 160 130 80 945 140 110 o o o o o Download Add to my list
133.132.000_RAL7016 ADF 132 133.132.000 220 130 80 1150 200 110 o o o o o Download Add to my list
133.150.000_RAL7016 ADF 150 133.150.000 180 150 90 1180 160 130 o o o o o Download Add to my list
133.152.000_RAL7016 ADF 152 133.152.000 260 150 90 1490 240 130 o o o o o Download Add to my list
133.170.000_RAL7016 ADF 170 133.170.000 200 170 90 1370 180 150 o o o o o Download Add to my list
133.172.000_RAL7016 ADF 172 133.172.000 280 170 90 1700 260 150 o o o o o Download Add to my list
  Part No. Length Width Height Add to my list
133.090.000_RAL7016 133.090.000 120 90 70 Add to my list
133.092.000_RAL7016 133.092.000 160 90 70 Add to my list
133.110.000_RAL7016 133.110.000 140 110 80 Add to my list
133.112.000_RAL7016 133.112.000 200 110 80 Add to my list
133.130.000_RAL7016 133.130.000 160 130 80 Add to my list
133.132.000_RAL7016 133.132.000 220 130 80 Add to my list
133.150.000_RAL7016 133.150.000 180 150 90 Add to my list
133.152.000_RAL7016 133.152.000 260 150 90 Add to my list
133.170.000_RAL7016 133.170.000 200 170 90 Add to my list
133.172.000_RAL7016 133.172.000 280 170 90 Add to my list

⬤ standard   o available   - not available




aluDOOR_ADO_VariationInfoImage

aluDOOR ADO: Version with flat lid

  Type Part No. Length Width Height Weight (g) Mounting point D Mounting point E Silicon-gasket Shielding Corrosion proof coating Mounting plates Supporting rail for series terminals XA Download Add to my list
134.090.000_RAL7016 ADO 090 134.090.000 120 90 70 605 100 70 o o o o o Download Add to my list
134.092.000_RAL7016 ADO 092 134.092.000 160 90 70 710 140 70 o o o o o Download Add to my list
134.110.000_RAL7016 134.110.000 140 110 80 790 120 90 o o o o o Download Add to my list
134.112.000_RAL7016 ADO 112 134.112.000 200 110 80 980 180 90 o o o o o Download Add to my list
134.130.000_RAL7016 ADO 130 134.130.000 160 130 80 950 140 110 o o o o o Download Add to my list
134.132.000_RAL7016 ADO 132 134.132.000 220 130 80 1160 200 110 o o o o o Download Add to my list
134.150.000_RAL7016 ADO 150 134.150.000 180 150 90 1190 160 130 o o o o o Download Add to my list
134.152.000_RAL7016 ADO 152 134.152.000 260 150 90 1500 240 130 o o o o o Download Add to my list
134.170.000_RAL7016 ADO 170 134.170.000 200 170 90 1380 180 150 o o o o o Download Add to my list
134.172.000_RAL7016 ADO 172 134.172.000 280 170 90 1710 260 150 o o o o o Download Add to my list
  Part No. Length Width Height Add to my list
134.090.000_RAL7016 134.090.000 120 90 70 Add to my list
134.092.000_RAL7016 134.092.000 160 90 70 Add to my list
134.110.000_RAL7016 134.110.000 140 110 80 Add to my list
134.112.000_RAL7016 134.112.000 200 110 80 Add to my list
134.130.000_RAL7016 134.130.000 160 130 80 Add to my list
134.132.000_RAL7016 134.132.000 220 130 80 Add to my list
134.150.000_RAL7016 134.150.000 180 150 90 Add to my list
134.152.000_RAL7016 134.152.000 260 150 90 Add to my list
134.170.000_RAL7016 134.170.000 200 170 90 Add to my list
134.172.000_RAL7016 134.172.000 280 170 90 Add to my list

⬤ standard   o available   - not available




Enclosure sizes

10 - with 2 lid variants: ADF = Series with recess in the lid and ADO = Series with flat lid

Further information

Integrated hinge function on side D with 2 securing screws (A2, self-forming)
Captive lid secured with two screws
Fastening with closed enclosure
Clip-on design covers, coated silver matt
Opening angle of the lid max. 100°

Enclosure

Die cast aluminium alloy
EN AC-44300 DIN EN 1706
(GD Al Si 12/DIN 1725)
1° mould slope for casting ejection > Internal circumference dimensions decrease by 1° towards enclosure base

Fastening

Separate screw channels

Internal mountings

Fastening domes with M5 thread on the enclosure bottom and in the lid

Ingress protection

IP 66, 67 / EN 60529, IP 69K / ISO 20563

Gasket

Foamed, polyurethane (PUR)
Optional: Silicone seal
Optional: EMC gasket

Surface

Powder coating, RAL 7016
Design covers, silver matt powder coating
Optional: Special colours
Optional: Corrosion protection

Lid screws

Stainless steel 1.4567, M5 with TX25, captive

Lid fastening thread

Casting sleeves, stainless steel A2

Hinge

Securing screws M5 self-forming for hinge attachment
