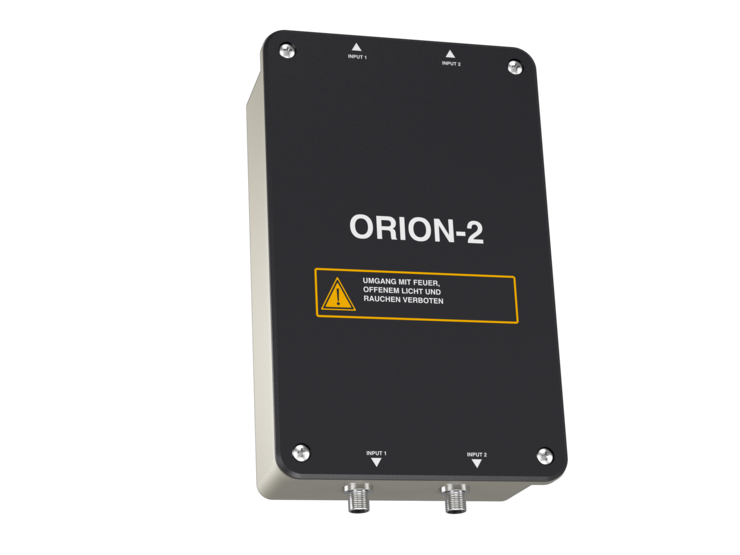

conFORM enclosures application
conFORM - versatile diecast enclosures with in-built EMC shielding
Integrated tooth system between lid and base provides shielding
Accessory external mounting brackets
Optional external lid hinges
Installation frame also available
Optional internal mounting plates (customised on demand)
Optional silicone gasket
IP 66, Optional: IP 67
conFORM is a highly versatile and economic range of EMC shielded aluminium enclosures with in-built shielding. The design does not require expensive and delicate conductive gaskets – continuous contact is created by means of a patented tooth system which is pre-cast into the lid and base.
The conFORM range is ideal for industrial electronics and controls that require special levels of shielding. The enclosures are water-tight and weather resistant to IP 66. Threaded screw bosses are provided inside for fitting circuit boards, mounting plates, terminal rails etc. Accessories such as mounting plates and cable glands are also available.
We can supply conFORM enclosures fully customised to your requirements.
| Type | Part No. | Length | Width | Height | Weight (g) | Mounting point D | Mounting point E | External mounting brackets | Silicon-gasket | Lid holders | Installation kit | Shielding | Corrosion proof coating | Mounting plates | Protection Class IP 67 | Hinges | Supporting rail for series terminals | Download | 3D-Model-Download | Add to my list | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EK 081 | 110.081.000 | 79 | 84 | 67 | 320 | 63 | 52 | o | o | o | o | ⬤ | o | o | o | o | o | Download |
|
|
|
EK 082 | 110.082.000 | 130 | 85 | 67 | 514 | 113 | 52 | o | o | o | o | ⬤ | o | o | o | o | o | Download |
|
|
|
EK 083 | 110.083.000 | 180 | 85 | 67 | 666 | 163 | 52 | o | o | o | o | ⬤ | o | o | o | o | o | Download |
|
|
|
EK 121 | 110.121.000 | 127 | 125 | 90 | 1050 | 106 | 82 | o | o | o | o | ⬤ | o | o | o | o | o | Download |
|
|
|
EK 123 | 110.123.000 | 226 | 126 | 90 | 1386 | 204 | 82 | o | o | o | o | ⬤ | o | o | o | o | o | Download |
|
|
|
EK 161 | 110.161.000 | 166 | 166 | 100 | 1550 | 140 | 110 | o | o | o | o | ⬤ | o | o | o | o | o | Download |
|
|
|
EK 162 | 110.162.000 | 268 | 168 | 100 | 2128 | 240 | 110 | o | o | o | o | ⬤ | o | o | o | o | o | Download |
|
|
|
EKF 081 | 111.081.000 | 79 | 84 | 44 | 260 | 63 | 52 | o | o | - | o | ⬤ | o | o | o | o | o | Download |
|
|
|
EKF 082 | 111.082.000 | 130 | 85 | 44 | 408 | 113 | 52 | o | o | - | o | ⬤ | o | o | o | o | o | Download |
|
|
|
EKF 083 | 111.083.000 | 180 | 85 | 44 | 538 | 163 | 52 | o | o | - | o | ⬤ | o | o | o | o | o | Download |
|
|
|
EKF 121 | 111.121.000 | 127 | 125 | 60 | 880 | 106 | 82 | o | o | - | o | ⬤ | o | o | o | o | o | Download |
|
|
|
EKF 123 | 111.123.000 | 226 | 126 | 60 | 1150 | 204 | 82 | o | o | - | o | ⬤ | o | o | o | o | o | Download |
|
|
|
EKF 161 | 111.161.000 | 166 | 166 | 60 | 1320 | 140 | 110 | o | o | - | o | ⬤ | o | o | o | o | o | Download |
|
|
|
EKF 162 | 111.162.000 | 268 | 168 | 60 | 1880 | 240 | 110 | o | o | - | o | ⬤ | o | o | o | o | o | Download |
|
|
| Part No. | Length | Width | Height | Add to my list | |
|---|---|---|---|---|---|
|
|
110.081.000 | 79 | 84 | 67 |
|
|
|
110.082.000 | 130 | 85 | 67 |
|
|
|
110.083.000 | 180 | 85 | 67 |
|
|
|
110.121.000 | 127 | 125 | 90 |
|
|
|
110.123.000 | 226 | 126 | 90 |
|
|
|
110.161.000 | 166 | 166 | 100 |
|
|
|
110.162.000 | 268 | 168 | 100 |
|
|
|
111.081.000 | 79 | 84 | 44 |
|
|
|
111.082.000 | 130 | 85 | 44 |
|
|
|
111.083.000 | 180 | 85 | 44 |
|
|
|
111.121.000 | 127 | 125 | 60 |
|
|
|
111.123.000 | 226 | 126 | 60 |
|
|
|
111.161.000 | 166 | 166 | 60 |
|
|
|
111.162.000 | 268 | 168 | 60 |
|
CSA (optional)
GOST
Germanischer Lloyd (optional)
14 sizes
Dimensions: L x W x H
79 x 84 x 44 mm to 268 x 168 x 100 mm
High shielding from radiation interference (EMC tested by the University of Hanover)
Inexpensive, as there is no need for expensive conductive gaskets
Large range of accessories
Diecast aluminium alloy:
EN AN-44300 DIN EN 1706
(GD Al Si 12/DIN 1725)
1° mould slope for casting ejection > internal circumference dimensions decrease by 1° towards enclosure bottom.
Separate screw channels outside of the enclosure interior
Console panel integration with installation kit
M4/M6 fastening thread on the enclosure base and attachment options in the lid
IP 66 / EN 60529
Optional: IP 67 / EN 60529
TPE moulded gasket, silicone-free, temperature resistance: -40°C to +120°C
Optional: Silicone gasket, temperature resistance: -50°C to +140°C
Stainless steel 1.4567, captive
Powder coating RAL 7032, pebble grey
Optional: Special colours
Optional: Corrosion protection
Learn more about our full customising service for installation-ready enclosures
Ingress protection
Lid screws
