mobilCASE enclosures application
Versatile extruded aluminium enclosures for handheld electronics
1-part closed enclosure profile for slide-in PCBs (IP 65)
2-part open enclosure profiles for fitting PCB assemblies with keypads, displays etc. (IP 54)
End Cover Kit DF - 2 flat end covers, 2 TPE seals, fixings
End Cover Kit DK - 1 deep end cover with M16 screw plug, 1 flat end cover, 2 TPE seals, fixings
M16 plug (with deep end cover) gives access to the battery compartment in the profiles
Accessory adaptor with M16 cable gland (replaces screw plug)
Optional adjustable tilt stand
Stand kit ABF - 2 flat end covers with tilt stand
Stand kit ABK - flat end cover with tilt stand, deep end cover with M16 plug
Optional wall/desk pivot mount brackets
Pivot mount set WH - with 2 flat end covers
Accessory set PK - shoulder strap with protective caps for carrying the unit
Holder for storing the unit on a machine or wall
Accessory set CH - enclosure holder
Combination kit PG - connects two case profiles
IP 54 / IP 65

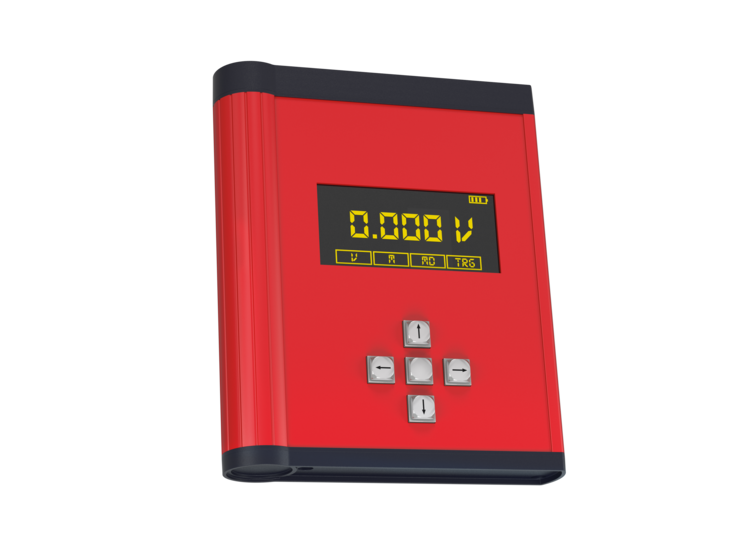

mobilCASE is a modern and ergonomic range of extruded enclosures which is ideal for handheld electronic instruments and mobile machine/robotic controllers. Three standard widths are available to suit a wide range of applications. The enclosures can be supplied in custom lengths on demand. Each enclosure consist of a case profile and two end covers which are supplied with TPE moulded sealing gaskets and a screw kit. There are various types of end cover kits and accessories to suit different uses and installation set-ups. The enclosures are specified from individual kits.
HOW TO CONFIGURE YOUR mobilCASE ENCLOSURES
1). Enclosure Profile
Select the size and type of enclosure profile you need from the table below (click on part no.). The profiles are specified in PCB widths: 80, 100 and 130 mm (Dim. P). Types: 1-Part (IP 65) single profile for slide-in PCBs or 2-Part (IP 54) open profile which allows for keypads, displays etc. to pass through the top (when machined).
2). End Covers Kit
Select a suitable end cover kit from the accessories section. All cover kits include two TPE moulded seals and a screw kit. Options:
3). Accessories
Select any optional accessories:
CONFIGURATOR
You can also specify these enclosures in custom sizes using the mobilCASE configurator.
CUSTOMIZED VERSIONS
We can supply mobilCASE enclosures fully machined and finished to your requirements.
| Type | Part No. | Length | Width | Measurement P | Download | 3D-Model-Download | Add to my list | |
|---|---|---|---|---|---|---|---|---|
|
1-Part Profile P 80-1-120 | 250.080.120 | 120 | 118 | 80 | Download |
|
|
|
1-Part Profile P 80-1-160 | 250.080.160 | 160 | 118 | 80 | Download |
|
|
|
1-Part Profile P 100-1-160 | 250.100.160 | 160 | 138 | 100 | Download |
|
|
|
1-Part Profile P 100-1-200 | 250.100.200 | 200 | 138 | 100 | Download |
|
|
|
1-Part Profile P 130-1-180 | 250.130.180 | 180 | 168 | 130 | Download |
|
|
|
1-Part Profile P 130-1-240 | 250.130.240 | 240 | 168 | 130 | Download |
|
|
|
2-Part Profile P 80-2-120 | 251.080.120 | 120 | 118 | 80 | Download |
|
|
|
2-Part Profile P 80-2-160 | 251.080.160 | 160 | 118 | 80 | Download |
|
|
|
2-Part Profile P 100-2-160 | 251.100.160 | 160 | 138 | 100 | Download |
|
|
|
2-Part Profile P 100-2-200 | 251.100.200 | 200 | 138 | 100 | Download |
|
|
|
2-Part Profile P 130-2-180 | 251.130.180 | 180 | 168 | 130 | Download |
|
|
|
2-Part Profile P 130-2-240 | 251.130.240 | 240 | 168 | 130 | Download |
|
|
| Part No. | Length | Width | Add to my list | |
|---|---|---|---|---|
|
|
250.080.120 | 120 | 118 |
|
|
|
250.080.160 | 160 | 118 |
|
|
|
250.100.160 | 160 | 138 |
|
|
|
250.100.200 | 200 | 138 |
|
|
|
250.130.180 | 180 | 168 |
|
|
|
250.130.240 | 240 | 168 |
|
|
|
251.080.120 | 120 | 118 |
|
|
|
251.080.160 | 160 | 118 |
|
|
|
251.100.160 | 160 | 138 |
|
|
|
251.100.200 | 200 | 138 |
|
|
|
251.130.180 | 180 | 168 |
|
|
|
251.130.240 | 240 | 168 |
|
GOST
3 standard PCB widths (Dim. P: 80 mm, 100 mm, 130 mm) in 2 versions
Closed 1-part profile for slide-in PCBs
2-part profile (top and base) for easy assembly of keyboards, displays etc.
Integrated recess in the profiles for a membrane keypad or product label
Die-cast flat end covers or deep end covers with collar to protect plug connectors
Optional: Adapter with M16 cable gland for external power supply
Optional: Case holder for storing the unit on the wall or machine
Optional: Combination kit for connecting two profiles (also with different sections)
Optional: Shoulder strap with protective caps for portable instruments
Optional: Adjustable tilt stand kits including end covers
Optional: Battery holders for 2 or 4 AA batteries
Extruded aluminium profile: AL Mg Si 0.5 / DIN 17615
Powder coating, silver metallic
Optional: Anodised
End cover (2 variants): Die-cast zinc alloy GD-Zn Al 4 Cu 1 / DIN EN 12844
Powder coating, RAL 9005, deep black
Optional: Special colours
Optional: Clip holder for setting down devices at the wall or machine
Optional: Articulated wall/desk fixation including stand
For circuit board widths 80 mm/100 mm (Eurocard)/130mm
Profile 1-part IP 65 / EN 60529
Profile 2-part IP 54 / EN 60529
Set PG IP 54 / EN 60529
Lid: TPE moulded gasket, silicone-free, temperature resistance: -30°C to +100°C
Profile: Chloroprene O-ring gasket (CR), temperature resistance: -30°C to +90°C
Stainless steel 1.4567
Learn more about our full customising service for installation-ready enclosures
Lid screws
Material
