technoDISC enclosures IIoT application

Highly attractive round plastic enclosures for modern electronics

Detachable trims hide the lid fixings and mounting screws

technoDISC can be mounted without opening the lid (protecting the electronics inside)

Recessed lid for fitting a membrane keypad, label or face plate

Screw pillars in the base and lid for fitting PCBs, displays etc

Optional internal mounting plates (customised on demand)




technoDISC

An absolute all-rounder in every respect

GOST Certified

IP 66 - Optional: IP 67

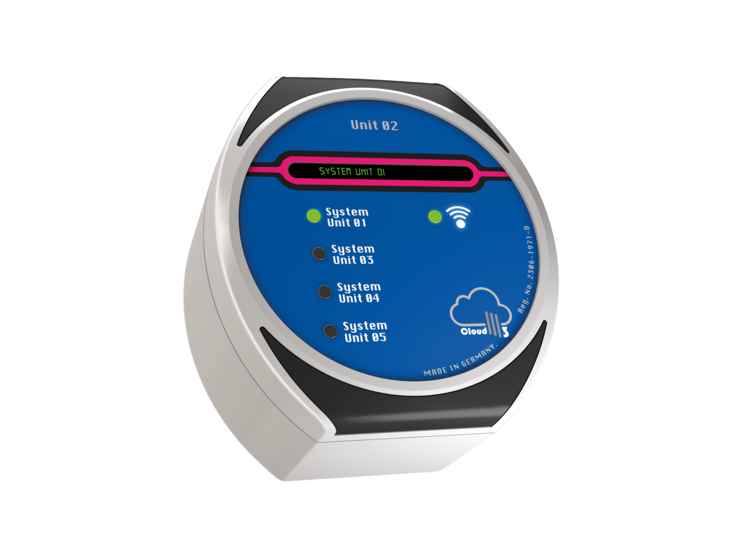

technoDISC is a unique range of high performance plastic enclosures for industrial electronics. It is especially ideal for Industry 4.0 and IIOT applications.

The enclosures have a modern and highly attractive individual appearance with no visible fixing screws. Dark grey snap-on lid trims hide all of the assembly and mounting screws — providing tamper protection. The lid is recessed for locating a membrane keypad, front plate or product label.

technoDISC is available in four standard sizes with plenty of space inside for PCBs and electronic components. The enclosure can be mounted without opening the lid using the separate mounting channels (protecting the electronics inside). Screw pillars are moulded in the lid and base sections for fitting PCBs, mounting plates and electronic assemblies.

Accessory lid retaining straps, internal mounting plates and cable glands are available.

Generate PDF






  Type Part No. Length Width Height Weight (g) Mounting point D Mounting point E Measurement F Measurement G Shielding Supporting rail for series terminals Download Add to my list
technoDISC_080 TD 080 285.080.000 110 97 55 216 87.9 42.3 27.5 7 o o Download Add to my list
technoDISC_100 TD 100 285.100.000 130 119 65 350 98 66 40 30.5 o o Download Add to my list
technoDISC_120 TD 120 285.120.000 150 139 80 395 115 78.5 55 41.5 o o Download Add to my list
TechnoDisc_160 TD 160 285.160.000 190 179 90 712 154 97 65 60.5 o o Download Add to my list
  Part No. Length Width Height Add to my list
technoDISC_080 285.080.000 110 97 55 Add to my list
technoDISC_100 285.100.000 130 119 65 Add to my list
technoDISC_120 285.120.000 150 139 80 Add to my list
TechnoDisc_160 285.160.000 190 179 90 Add to my list

⬤ standard   o available   - not available




Certifications

GOST

Enclosure sizes

4 Sizes
Dimensions L x W x H
110 x 97 x 55 mm to 190 x 179 x 90 mm

Further information

Integrated recesses for membrane keypads or front plates
Functional and extensive range of accessories

Enclosure

ASA+PC, similar to RAL 7035 light grey
Special material on request
2° mould slope for casting ejection, internal circumference dimensions decrease by 2° towards the enclosure base
Clip-on design covers, plastic polyoxymethylene (POM), RAL 7016 anthracite grey

Flammability

UL 94 V-0

Fastening

Separate screw channels outside of the enclosure interior, enclosure to be fastened while the lid is closed

Internal mountings

Fastening option for self-grooving screws on the base of the enclosure and in the lid

Ingress protection

IP 66 / EN 60529
Optional: IP 67 / EN 60529

Gasket

Silicone moulded gasket, temperature resistance: -50°C to +140°C
Optional: EMC gasket, temperature resistance: -55°C to +160°C

Lid screws

Stainless steel 1.4567, captive
